Dimension DIN 934 Hex Nuts

DIN 934 Hex Nuts

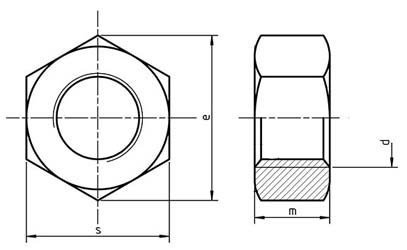

DIN 934 Hex Nut Dimensions (Coarse Threads)

d

s max. e min. m max.
M2 4 4.32 1.6
M2.5 5 5.45 2
M2.6 5 5.45 2
M3 5.5 6.01 2.4
M3.5 6 6.58 2.8
M4 7 7.66 3.2
M5 8 8.79 4
M6 10 11.05 5
M7 11 12.12 5.5
M8 13 14.38 6.5
M10 17 18.9 8
M12 19 21.1 10
M14 22 24.49 11
M16 24 26.75 13
M18 27 29.56 15
M20 30 32.95 16
M22 32 35.03 18
M24 36 39.55 19
M27 41 42.2 22
M30 46 50.85 24
M33 50 55.37 26
M36 55 60.79 29
M39 60 66.44 31
M42 65 71.3 34
M45 70 76.95 36
M48 75 82.6 38
M52 80 88.25 42
M56 85 93.56 45
M60 90 99.21 48
M64 95 104.86 51
M68 100 110.51 54
M72 105 116.16 58
M76 110 121.81 61
M80 115 127.46 64
M90 130 144.08 72
M100 145 161.02 80

DIN 934 Hex Nut Dimensions (Fine Threads)

d s max. e min. m max.
M6 x 0.75 10 11.05 5
M8 x 1 13 14.38 6.5
M10 x 1 17 18.9 8
M10 x 1.25 17 18.9 8
M12 x 1 19 21.1 10
M12 x 1.25 19 21.1 10
M12 x 1.5 19 21.1 10
M14 x 1.5 22 24.49 11
M16 x 1.5 24 26.75 13
M18 x 1.5 27 29.56 15
M18 x 2 27 29.56 15
M20 x 1.5 30 32.95 16
M20 x 2 30 32.95 16
M22 x 1.5 32 35.03 18
M22 x 2 32 35.03 18
M24 x 1.5 36 39.55 19
M24 x 2 36 39.55 19
M27 x 1.5 41 45.2 22
M27 x 2 41 45.2 22
M30 x 1.5 46 50.85 24
M30 x 2 46 50.85 24
M30 x 3 46 50.85 24
M33 x 1.5 50 55.37 26
M33 x 2 50 55.37 26
M36 x 1.5 55 60.79 29
M36 x 2 55 60.79 29
M36 x 3 55 60.79 29
M39 x 3 60 66.44 31
M42 x 3 65 71.3 34
M45 x 3 70 76.95 36
M48 x 3 75 82.6 38
