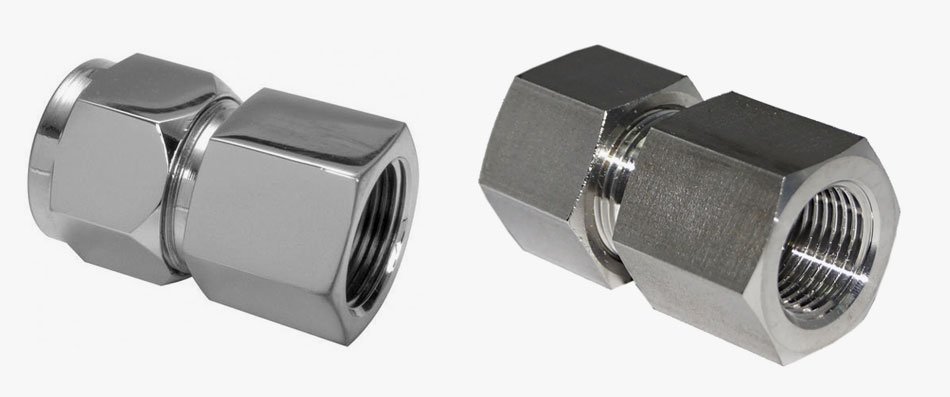

Female Connector
Female Connector Tube Fittings, Tube Female Connector, Suppliers of SS 316 Female Connector, Brass Female Connector Manufacturer India, Manufacturer of Female Connector Instrumentation Pipe Fittings At Factory Price In India.
Vintex Steel & Engg. Co. is a widely prominent manufacturer of Female Connector Tube Fittings, which is regularly utilized in regions wherein grades have botched to corrosion. It gives extra effective pitting and corrosion safety than steel, due to elevated ranges of nickel and molybdenum within the alloy. This excellent assured flanges have outstanding completing and correct dimensions. The important characteristic of such Inconel Alloy Female Connector Tube Fittings is identical except presenting retailers which can be differing to every different.
Monel Female Connector Instrumentation Tube Fitting, Hastelloy Female Connector at Best Price in India, Inconel Double Ferrule Fitting Female Connector Stockist, Nickel Alloy Female Connector, Duplex Steel Female Connector Manufacturer In India.
In addition, it has extraordinary residences of hardness, power, temperature resistance and corrosion resistance. Due to eminent alloy absorption, they’re notably used because the connectors for piping structures within the strength technology and deliver constructing industry. They are having amazing mechanical houses and oxidation resistance at excessive temperatures. They are being utilized in quite a number of packages like structural and mechanical & fashionable engineering purposes. They are operated manually, both through a handle, lever, pedal or wheel. Hastelloy Alloy Female Connector Tube Fittings are particularly attainable material as this is frivolous, and hundred percentages ecological.
Material Specification Chart Of Female Connector
| Imperial Size | 1/2″ to 2″ |
| Dimensional Standard | ASME / ANSI B 16.9 |
| Tube Size | 1/16”OD to 2”OD, 2mm OD to 50mm ODe |
| Thread | NPT, BSP, BSPT, UNF, ISO, SAE, MS, AN, weld ends etc. |
| Pressure Rating | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
| Temperature Ratings | Up to 1000°F (537°C) |
Female Connector Material & Grades
Stainless Steel : ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61, S31803, S32205, S32550, S32750, S32760, S32950
Alloy Steel : ASTM SA182 – E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI 4130, AISI 4140, AISI 4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
Carbon Steel : ASTM A234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Nickel Alloy : Nickel 200, Nickel 201
Monel : Monel 400, Monel K500
Inconel : Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy : Incoloy 800, Incoloy 800H, 800HT
Hastalloy : Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium : Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Copper : ASTM SB 61, SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Female Connector Series
| Female Connector BSP / BSPP | |||||||||||
| Imperial Tubing | |||||||||||
| Tube O.D inch | NPT thread | A | C | D | W inch |
Min bore |
|||||
| inch | mm | inch | mm | inch | mm | inch | mm | ||||
| 1/16 | 1/16 | 0.92 | 23.4 | 0.43 | 10.9 | 0.78 | 19.8 | 7/16 | 0.05 | 1.3 | |
| 1/16 | 1/8 | 0.95 | 24.1 | 0.43 | 10.9 | 0.81 | 20.6 | 9/16 | 0.05 | 1.3 | |
| 1/8 | 1/8 | 1.13 | 28.7 | 0.60 | 15.2 | 0.88 | 22.4 | 9/16 | 0.09 | 2.3 | |
| 1/8 | 1/4 | 1.31 | 33.3 | 0.60 | 15.2 | 1.06 | 26.9 | 3/4 | 0.09 | 2.3 | |
| 3/16 | 1/8 | 1.16 | 29.5 | 0.63 | 16.0 | 0.91 | 23.1 | 9/16 | 0.13 | 3.3 | |
| 3/16 | 1/4 | 1.28 | 32.5 | 0.63 | 16.0 | 1.03 | 26.2 | 3/4 | 0.13 | 3.3 | |
| 1/4 | 1/8 | 1.24 | 26.6 | 0.70 | 17.8 | 0.94 | 23.9 | 9/16 | 0.19 | 4.8 | |
| 1/4 | 1/4 | 1.43 | 36.3 | 0.70 | 17.8 | 1.13 | 28.7 | 3/4 | 0.19 | 4.8 | |
| 1/4 | 3/8 | 1.49 | 37.9 | 0.70 | 17.8 | 1.19 | 30.2 | 7/8 | 0.19 | 4.8 | |
| 1/4 | 1/2 | 1.71 | 43.4 | 0.70 | 17.8 | 1.41 | 35.8 | 1.1/16 | 0.19 | 4.8 | |
| 5/16 | 1/8 | 1.26 | 32.0 | 0.73 | 18.6 | 0.97 | 24.6 | 9/16 | 0.25 | 6.4 | |
| 5/16 | 1/4 | 1.45 | 36.8 | 0.73 | 18.6 | 1.16 | 29.5 | 3/4 | 0.25 | 6.4 | |
| 5/16 | 3/8 | 1.51 | 38.4 | 0.73 | 18.6 | 1.22 | 31.0 | 7/8 | 0.25 | 6.4 | |
| 3/8 | 1/8 | 1.29 | 32.8 | 0.76 | 19.3 | 1.00 | 25.4 | 5/8 | 0.28 | 7.1 | |
| 3/8 | 1/4 | 1.48 | 37.6 | 0.76 | 19.3 | 1.19 | 30.2 | 3/4 | 0.28 | 7.1 | |
| 3/8 | 3/8 | 1.54 | 39.1 | 0.76 | 19.3 | 1.25 | 31.8 | 7/8 | 0.28 | 7.1 | |
| 3/8 | 1/2 | 1.73 | 43.9 | 0.76 | 19.3 | 1.44 | 36.6 | 1.1/16 | 0.28 | 7.1 | |
| 1/2 | 1/4 | 1.63 | 41.4 | 0.86 | 21.8 | 1.25 | 31.8 | 13/16 | 0.41 | 10.4 | |
| 1/2 | 3/8 | 1.63 | 41.4 | 0.86 | 21.8 | 1.25 | 31.8 | 7/8 | 0.41 | 10.4 | |
| 1/2 | 1/2 | 1.82 | 46.2 | 0.86 | 21.8 | 1.44 | 36.6 | 1.1/16 | 0.41 | 10.4 | |
| 1/2 | 3/4 | 1.88 | 47.8 | 0.86 | 21.8 | 1.50 | 38.1 | 1.5/16 | 0.41 | 10.4 | |
| 5/8 | 3/8 | 1.63 | 41.4 | 0.86 | 21.8 | 1.25 | 31.8 | 15/16 | 0.50 | 12.7 | |
| 5/8 | 1/2 | 1.82 | 46.2 | 0.86 | 21.8 | 1.44 | 36.6 | 1.1/16 | 0.50 | 12.7 | |
| 3/4 | 1/2 | 1.82 | 46.2 | 0.86 | 21.8 | 1.44 | 36.6 | 1.1/16 | 0.63 | 16 | |
| 3/4 | 3/4 | 1.88 | 47.8 | 0.86 | 21.8 | 1.50 | 38.1 | 1.5/16 | 0.63 | 16 | |
| 7/8 | 3/4 | 1.94 | 49.3 | 0.86 | 21.8 | 1.56 | 39.6 | 1.3/8 | 0.75 | 19.1 | |
| 1 | 3/4 | 2.10 | 53.3 | 1.04 | 26.4 | 1.63 | 41.4 | 1.3/8 | 0.88 | 22.4 | |
| 1 | 1 | 2.44 | 62.0 | 1.04 | 26.4 | 1.97 | 50.0 | 1.5/8 | 0.88 | 22.4 | |
| Metric tubing | |||||||||
| Tube O.D(mm) | NPT Thread | A | C | D | W(inch) | Min bore (mm) | |||
| mm | mm | mm | |||||||
| 3 | 1/8 | 28.8 | 15.3 | 22.2 | 9/16 | 2.4 | |||
| 3 | 1/4 | 33.6 | 15.3 | 27.0 | 3/4 | 2.4 | |||
| 4 | 1/8 | 29.6 | 16.1 | 23.0 | 9/16 | 3.0 | |||
| 6 | 1/8 | 31.3 | 17.7 | 23.8 | 9/16 | 4.8 | |||
| 6 | 1/4 | 36.1 | 17.7 | 28.6 | 3/4 | 4.8 | |||
| 6 | 3/8 | 37.7 | 17.7 | 30.2 | 7/8 | 4.8 | |||
| 8 | 1/8 | 32.1 | 18.6 | 24.6 | 9/16 | 6.4 | |||
| 8 | 1/4 | 36.9 | 18.6 | 29.4 | 3/4 | 6.4 | |||
| 8 | 3/8 | 38.5 | 18.6 | 31.0 | 7/8 | 6.4 | |||
| 10 | 1/4 | 37.8 | 19.5 | 30.2 | 3/4 | 7.9 | |||
| 10 | 3/8 | 39.4 | 19.5 | 31.8 | 7/8 | 7.9 | |||
| 10 | 1/2 | 44.1 | 19.5 | 36.5 | 1.1/16 | 7.9 | |||
| 12 | 1/4 | 41.9 | 22.0 | 31.8 | 13/16 | 9.5 | |||
| 12 | 3/8 | 41.9 | 22.0 | 31.8 | 7/8 | 9.5 | |||
| 12 | 1/2 | 46.6 | 22.0 | 36.5 | 1.1/16 | 9.5 | |||
| 16 | 3/8 | 41.9 | 22.0 | 31.8 | 1.5/16 | 12.7 | |||
| 16 | 1/2 | 46.6 | 22.0 | 36.5 | 1.1/16 | 12.7 | |||
| 20 | 1/2 | 47.9 | 22.0 | 37.8 | 1.3/16 | 15.9 | |||
| 20 | 3/4 | 49.7 | 22.0 | 39.6 | 1.3/8 | 15.9 | |||
| 25 | 3/4 | 53.6 | 26.5 | 41.3 | 1.3/8 | 22.2 | |||
| 25 | 1 | 62.3 | 26.5 | 50.0 | 1.5/8 | 22.2 | |||
| Imperial Tubing | ||||||||||||
| Tube O.D(inch) | BSP Tr thread | A | C | D | W (inch) | Min (bore) | ||||||
| inch | mm | inch | mm | inch | mm | inch | mm | |||||
| 1/4 | 1/8 | 1.27 | 32.3 | 0.70 | 17.8 | 0.97 | 24.6 | 9/16 | 0.19 | 4.8 | ||
| 1/4 | 1/4 | 1.39 | 35.3 | 0.70 | 17.8 | 1.09 | 27.7 | 3/4 | 0.19 | 4.8 | ||
| 1/4 | 3/8 | 1.52 | 38.6 | 0.70 | 17.8 | 1.22 | 31.0 | 7/8 | 0.19 | 4.8 | ||
| 1/4 | 1/2 | 1.68 | 42.7 | 0.70 | 17.8 | 1.38 | 35.1 | 1.1/16 | 0.19 | 4.8 | ||
| GCR – BSPP Gauge connector | |||||||||
| Metric tubing | |||||||||
| Tube O.D(mm) | BSPP thread | A | C | D | P | W(inch) | Min bore | ||
| mm | mm | mm | mm | ||||||
| 6 | 1/4 | 37.7 | 17.7 | 30.2 | 5.2 | 3/4 | 4.8 | ||
| 6 | 3/8 | 37.7 | 17.7 | 30.2 | 6.5 | 7/8 | 4.8 | ||
| 6 | 1/2 | 43.2 | 17.7 | 35.7 | 7.0 | 1.1/16 | 4.8 | ||
| 8 | 1/4 | 38.5 | 18.6 | 31.0 | 5.2 | 3/4 | 5.2 | ||
| 8 | 3/8 | 40.8 | 18.6 | 33.3 | 6.5 | 7/8 | 6.5 | ||
| 8 | 1/2 | 44.0 | 18.6 | 36.5 | 7.0 | 1.1/16 | 6.4 | ||
| 10 | 1/4 | 39.4 | 19.5 | 31.8 | 5.2 | 3/4 | 5.2 | ||
| 10 | 3/8 | 38.8 | 19.5 | 31.2 | 6.5 | 7/8 | 6.5 | ||
| 10 | 1/2 | 41.3 | 19.5 | 33.7 | 7.0 | 1.1/16 | 7.0 | ||
| 12 | 1/4 | 41.9 | 22.0 | 31.8 | 5.2 | 13/16 | 5.2 | ||
| 12 | 3/8 | 44.4 | 22.0 | 34.3 | 6.5 | 7/8 | 6.5 | ||
| 12 | 1/2 | 48.2 | 22.0 | 38.1 | 7.0 | 1.1/16 | 7.0 | ||
We are One Of The Most Trusted Supplier Of Female Connector in India. For final Female Connector Tube Fittings Price List. Please Call on +91 22 6636 2645 or drop an E-Mail : sales@vintexsteel.com
Other Related Products
Test Certificates Of Female Connector
- Hydrostatic Test
- Chemical Analysis – Spectro Analysis
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Mechanical Testing Such as Tensile, Elongation
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Micro Test
- Radiography Test
- Flattening Test
Stock List Of Female Connector
- Manufacturer of Copper Female Connector
- Female Connector Pipe Fittings
- Stainless Steel 316 Female Connector Tube Fittings
- Alloy Steel Female Connector Ferrule Fittings
- Incoloy Female Connector Twin Ferrule Fittings
- Nickel Tube Female Connector Supplier
- Brass BS 218 Female Connector Fittings
- SMO 254 Female ConnectoR Distributor
- TEFLON Tube Female Connector Fittings
- Cu-Ni 90/10 Female Connector Price
- PTFE Female Connector Tube Fittings
- Titanium Female Connector Manufacturer
Female Connector Uses and Application
- Nuclear Energy Sector
- Offshore & Chemical Industry
- Engineering & Aerospace Industry
- Automotive industry
- Oil & Gas Industries
- Power Generation
- Architectural Trim and Molding
- Kitchen Benches, Sinks, Equipment
- Food Processing Equipment
