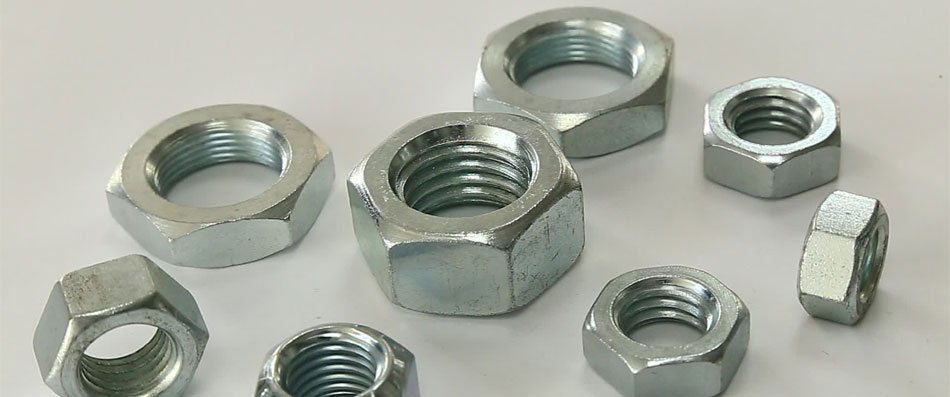

Super Duplex S32750 / S32760 Hex Nut
SDSS S32750 Hex Head Nut, Super Duplex S32750 Hexagon Nuts, Super Duplex S32750 Industrial Hex Nuts, Super Duplex Steel S32760 Slotted Hex Nuts, Suppliers of Super Duplex S32760 Hex Nut, SAF 2507 Heavy Hex Nuts At Factory Price In India.
Vintex Steel &Engg. Co. is a noticeable exporter of Super Duplex Steel S32750 / S32760 Hex Nuts whichare an age-hardenable alloy of nickel-chromium-iron.
It is regularly utilized in processing equipment; crude petroleum stills, system vessels and piping; fuel and sparkling water tanks; boiler feed-water warmers and different warmth exchangers. It is used substantially in (for pipe) piping, which in addition has extremely good resistance to unexpectedly flowing brackish water or seawater. Super Duplex 2507 Hex Nutsis an alloy with excessive power and extremely good corrosion resistance in various acidic and alkaline environments and mainly appropriate for lowering conditions. Each of those additions performs their very own component in making Hex Nuts an excessive power alloy with extremely good corrosion resistance. The nickel, along with the molybdenum and copper in Hex Nuts, additionally offers extraordinary resistance to lowering chemicals.
SDSS S32760 Finished Hex Nuts, ASTM A479 SDSS 2507 Hex Nuts Supplier, Super Duplex Stainless Steel 2507 Coupling Nuts, DIN 1.4501 Heavy Hexagon Nuts, Super Duplex Stainless Steel S32760 Long Hex Nut Stockist, Super Duplex Steel S32760 Hex Jam Nuts, Super Duplex S32760 Machine Hex Nuts, 1.4410 Heavy Hex Nuts, UNS S32750 Hexagonal Nylon Lock Nut Manufacturer In India.
- Material Specification Chart Of Super Duplex S32750 / S32760 Hex Nuts
- Super Duplex S32750 / S32760 Hex Nuts Equivalent Grade
- Most Commonly used Super Duplex S32750 / S32760 Hex Nuts Types
- Super Duplex S32750 / S32760 Hex Nuts Available Standards
- Size Chart of Super Duplex S32750 / S32760 Hex Nuts
- Dimensions of Super Super Duplex S32750 / S32760 Hex Nuts
- Dimensions of Super Duplex S32750 / S32760 Heavy Hex Nuts
- Weight Chart Of Super Duplex S32750 / S32760 Hex Nuts
- Stock List Of Super Duplex S32750 / S32760 Hex Nuts
- Chemical Composition of Super Duplex S32750 / S32760 Hex Nuts
- Mechanical Properties of Super Duplex S32750 / S32760 Hex Nuts
- Super Duplex S32750 / S32760 Hex Nuts Uses and Application
- Super Duplex S32750 / S32760 Hex Nuts Export Countries
Molybdenum in Hex Nuts aids resistance to pitting and crevice corrosion, at the same time as chromium presents resistance to oxidizing environments. The resistance in Hex Nuts is advanced with the aid of using the precipitation of the gamma segment via solubilization and getting old warmth treatment, in order to hold ductility and longevity at excessive levels. Super Duplex WNR 1.4410 Hex Nuts has extraordinary resistance to fashionable corrosion, pitting, crevice corrosion, and stress-corrosion cracking in lots of aqueous environments which include the ones containing sulfides and chlorides.
The excessive nickel content material in Hex Nuts additionally offers resistance to chloride ion stress-corrosion cracking, in which pitting and crevice corrosion resistance is likewise extremely good. Super Duplex WNR 1.4501 Hex Nuts may be utilized in environments with excessive temperatures and mechanical stress, and additionally in which excessive floor balance is required. Primary programs of Hex Nuts encompass bearing assembly, ballast, casting, step soldering, and radiation shielding. It is regularly utilized in oil tubular products, floor and downhole hardware for oil programs, device joints, fasteners, hangers, shafting, valves, marine and doggy shafting. It has precise resistance to oxidation and scaling at excessive temperatures.
Material Specification Chart Of Super Duplex S32750 / S32760 Hex Nuts
| Grade | Super Duplex Steel 2507(UNS S32760/S32750) |
|---|---|
| Size | Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm |
| Hex Nuts | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Surface Coating | Ptfe Coated Nuts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Super Duplex S32750 / S32760 Hex Nuts Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex 2507 | 1.4410 | S32750 |
| Super Duplex 2507 | 1.4501 | S32760 |
Most Commonly used Super Duplex S32750 / S32760 Hex Nuts Types
Super Duplex Steel Slotted Hex Nut
- SDSS S32750 Slotted Hex Nut
- Super Duplex S32750 Slotted Hex Nut
- SAF 2507 Slotted Hex Nut
- S32760 Super Duplex Steel Hex Slotted Nuts
- 1.4410 Slotted Hex Nut
- UNS S32760 Heavy Hex Slotted Nut
- UNS S32750 Slotted Castle Nuts
Super Duplex Steel Heavy Hex Nut
- S32760 Super Duplex Steel Heavy Hex Nuts
- UNS S32750 Heavy Hex Nuts
- Super Duplex Steel 2507 Heavy Hex Nut
- SDSS S32750 Heavy Hex Nut
- 1.4410 Heavy Hex Nut
- Super Duplex S32750 Heavy Hex Nut
- UNS S32760 Heavy Duty Nuts
Super Duplex Steel Machine Hex Nut
- Super Duplex S32750 Machine Hex Nut
- 1.4501 Machine Hex Nut
- SDSS S32760 Machine Hex Nuts
- UNS S32760 Hex Machine Screw Nuts
- UNS S32750 Machine Hex Nuts
- Super Duplex Steel 2507 Machine Hex Nut
- SAF 2507 Machine Hex Nut
Super Duplex Steel Finished Hex Nut
- Super Duplex S32750 Finished Hex Nut
- Super Duplex Steel 2507 Finished Hex Nut
- 1.4501 Finished Hex Nut
- UNS S32760 Finish Hex Nuts
- S32760 Super Duplex Steel Finished Hex Nuts
- SAF 2507 Finished Hex Nut
- UNS S32750 Finished Hex Nuts
Super Duplex Steel Long Hex Nut
- UNS S32750 Long Hex Nuts
- UNS S32760 M6 Hex Coupling Nuts
- Super Duplex S32750 Long Hex Nut
- Super Duplex Steel 2507 Long Hex Nut
- SAF 2507 Long Hex Nut
- S32760 Super Duplex Steel Long Hex Nuts
- 1.4410 Coupling Hex Nut
Super Duplex Steel Hexagonal Nylon Lock Nut
- Super Duplex Steel 2507 Hex Nylon Lock Nut
- S32760 Super Duplex Steel Hex Nylon Lock Nuts
- UNS S32750 Hex Nylon Lock Nuts
- Super Duplex S32750 Hexagonal Nylon Lock Nut
- 1.4501 Hex Nylock Nut
- UNS S32760 Hex Nylock Nuts
- SAF 2507 Nylon Insert Hex Lock Nut
Super Duplex Steel Hex Flange Nut
- S32760 Super Duplex Steel Flange Hex Nuts
- UNS S32760 Hex Flange Nuts
- Super Duplex S32750 Hex Flange Nut
- UNS S32750 Flange Lock Nuts
- SAF 2507 Flange Hex Nuts
- SDSS S32750 Hex Flange Nut
- 1.4501 Hex Flange Nut
Super Duplex Steel Hex Jam Nut
- UNS S32760 Hex Jam Nuts
- Super Duplex S32750 Hex Jam Nut
- Super Duplex Steel 2507 Hex Jam Nut
- SDSS S32760 Hex Jam Nuts
- UNS S32750 Heavy Hex Jam Nuts
- 1.4410 Hex Jam Nut
- S32760 Super Duplex Steel Hexagon Jam Nuts
Super Duplex S32750 / S32760 Hex Nuts Available Standards
| DIN Nuts | Hexagon Nuts |
|---|---|
| Din 315 Nuts | DIN 934 |
| Din 431 Nuts | BS 1768 |
| Din 555 Nuts | BS 1769 |
| Din 557 Nuts | BS 1083 |
| Din 562 Nuts | BS 3692 |
| Din 582 Nuts | ISO 4032 |
| Din 934 Nuts | ISO 4033 |
| Din 936 Nuts | ANSI B18.2.2 |
| Din 1587 Nuts | |
| Din 6923 Nuts |
We are One Of The Most Trusted Supplier Of Super Duplex S32750 / S32760 Hex Nuts in India. For final Super Duplex Steel 2507 Hex Nuts Price List. Please Call on +91 22 6636 2645 or drop an E-Mail : sales@vintexsteel.com
Other Related Products
Size Chart of Super Duplex S32750 / S32760 Hex Nuts
| Nut Size (mm) |
Diameter* (mm) |
Height (mm) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | |
| 2.5 | 5 | 2 | 1.6 | |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
| * This is the diameter across the flats. It is also the size of wrench to use. | ||||
Dimensions of Super Duplex S32750 / S32760 Hex Nuts
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Across Flat (S) Max Min | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Thickness (M) MaxMin | 3.2 | 4.7 | 5.2 | 6.8 | 8.4 | 10.8 | 12.8 | 14.8 | 15.8 | 18 | 19.4 | 21.5 | 23.8 | 25.6 | 28.7 | 31 | 33.4 | 34 | 36 | 38 | 42 |
| 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 | 22.5 | 24.3 | 27.4 | 29.4 | 31.8 | 32.4 | 34.4 | 36.4 | 40.4 | |
| Across corners (E) Min | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 |
| Minor Dia at thread (min) | 3.242 | 4.134 | 4.917 | 6.647 | 8.376 | 10.106 | 11.835 | 13.835 | 15.294 | 17.294 | 19.294 | 20.752 | 23.752 | 26.211 | 29.211 | 31.67 | 34.67 | 37.129 | 40.129 | 42.587 | 46.587 |
| Minor Dia at thread (max) | 3.422 | 4.334 | 5.153 | 6.912 | 8.676 | 10.441 | 12.210 | 14.210 | 15.744 | 17.774 | 19.774 | 21.252 | 24.252 | 26.771 | 29.771 | 32.27 | 35.27 | 37.799 | 40.799 | 43.297 | 47.297 |
Hex Nuts In mm Threads To IS 6623-1985 GRADES 8S & 10S
All dimensions in mm
| DIA | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
| Pitch | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 |
| Head Across Flat (B) Min | 26.16 | 33 | 35 | 40 | 45 | 49 | 58.8 |
| Head Across Flat (B) Max | 27 | 34 | 36 | 41 | 46 | 50 | 60 |
| Height (H) Min Max | 16.4 | 19.4 | 22.3 | 22.9 | 26.3 | 29.1 | 35 |
| 17.1 | 20.7 | 23.6 | 24.2 | 27.6 | 30.7 | 36.6 | |
| Across corners C min | 29.56 | 37.29 | 39.55 | 45.20 | 50.85 | 55.37 | 66.44 |
| Minor Dia at thread (min) | 14.235 | 17.694 | 19.694 | 21.202 | 24.252 | 26.761 | 32.270 |
| Minor Dia at thread (max) | 14.610 | 18.144 | 20.144 | 21.702 | 24.752 | 27.321 | 32.870 |
Dimensions of Super Duplex S32750 / S32760 Heavy Hex Nuts
| UNC Nut N/B | Max Across Corners | Min Across Corners | Max Thickness | Min Thickness | Max Across Flats | Max Across Flats |
|---|---|---|---|---|---|---|
| 3/8 | 20.2 | 19.4 | 9.6 | 8.7 | 17.5 | 17 |
| 7/16 | 22 | 21.1 | 11.2 | 10.2 | 19 | 18.5 |
| 1/2 | 25.6 | 24.6 | 12.8 | 11.8 | 22.2 | 21.6 |
| 9/16 | 27.5 | 26.3 | 14.4 | 13.4 | 23.8 | 23.1 |
| 5/8 | 31.2 | 29.8 | 16 | 14.9 | 27 | 26.2 |
| 3/4 | 36.7 | 35.1 | 19.3 | 18 | 31.8 | 30.8 |
| 7/8 | 42.2 | 40.4 | 22.5 | 21.2 | 36.5 | 35.4 |
| 1 | 47.7 | 45.6 | 25.7 | 24.3 | 41.3 | 40 |
| 1 1/8 | 53.2 | 50.8 | 28.9 | 27.4 | 46 | 44.6 |
| 1 1/4 | 58.6 | 56.1 | 31.8 | 30.1 | 50.8 | 49.2 |
| 1 3/8 | 64.2 | 61.4 | 35 | 33.3 | 55.6 | 53.8 |
| 1 1/2 | 69.6 | 66.6 | 38.2 | 36.4 | 60.3 | 58.4 |
| 1 5/8 | 75.2 | 71.8 | 41.5 | 39.5 | 65.1 | 63 |
| 1 3/4 | 80.6 | 77.1 | 44.7 | 42.6 | 69.9 | 67.6 |
| 1 7/8 | 86.2 | 82.3 | 47.9 | 45.8 | 74.6 | 72.2 |
| 2 | 91.6 | 87.6 | 51.1 | 48.9 | 79.4 | 76.8 |
| 2 1/4 | 102.6 | 98.1 | 57.2 | 54.7 | 88.9 | 86.1 |
| 2 1/2 | 113.6 | 108.6 | 63.6 | 61 | 98.4 | 95.2 |
| 2 3/4 | 124.6 | 119.1 | 70.1 | 67.2 | 108 | 104.4 |
| 3 | 135.6 | 129.6 | 76.5 | 73.5 | 117.5 | 113.7 |
Weight Chart Of Super Duplex S32750 / S32760 Hex Nuts
| Size | Finished Hex | Heavy Hex | Finished Jam | Heavy Hex Jam | Square | Heavy Square |
|---|---|---|---|---|---|---|
| 1/2″ | 3.750 | 6.540 | 2.620 | 4.000 | 5.780 | 7.870 |
| 5/8″ | 7.330 | 11.900 | 4.930 | 6.960 | 10.800 | 14.300 |
| 3/4″ | 11.900 | 19.300 | 7.700 | 11.000 | 15.400 | 23.500 |
| 7/8″ | 19.000 | 29.700 | 12.000 | 16.700 | 24.500 | 36.200 |
| 1″ | 28.300 | 42.500 | 17.600 | 23.500 | 36.300 | 51.500 |
| 1-1/8″ | 40.300 | 59.200 | 24.700 | 32.400 | 52.500 | 72.400 |
| 1-1/4″ | 54.300 | 78.600 | 36.100 | 45.800 | 70.600 | 95.500 |
| 1-3/8″ | 73.000 | 102.000 | 47.900 | 59.300 | 94.500 | 125.000 |
| 1-1/2″ | 94.300 | 131.000 | 60.900 | 74.800 | 122.000 | 161.000 |
| 1-5/8″ | 162.000 | 91.600 | ||||
| 1-3/4″ | 151.000 | 204.000 | 100.000 | 114.000 | ||
| 1-7/8″ | 241.000 | 134.000 | ||||
| 2″ | 224.000 | 299.000 | 140.000 | 165.000 | ||
| 2-1/4″ | 419.000 | 227.000 | ||||
| 2-1/2″ | 564.000 | 332.000 | ||||
| 2-3/4″ | 738.000 | 429.000 | ||||
| 3″ | 950.000 | 545.000 | ||||
| 3-1/4″ | 1194.000 | 651.000 | ||||
| 3-1/2″ | 1526.000 | 851.000 | ||||
| 3-3/4″ | 1812.000 | 1005.000 | ||||
| 4″ | 2180.000 | 1200.000 |
Test Certificates Of Super Duplex S32750 / S32760 Hex Nuts
- Mill Test Report
- Raw Materials Certificate
- EN 10204/3.1B
- Third Party Inspection Report
- 100% Radiography Test Report
Chemical Composition of Super Duplex S32750 / S32760 Hex Nuts
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Mechanical Properties of Super Duplex S32750 / S32760 Hex Nuts
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 2507 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000, MPa – 800 | Psi – 80000, MPa – 550 | 15 % |
Super Duplex S32750 / S32760 Hex Nuts Uses and Application
- Nuclear Energy Sector
- Offshore & Chemical Industry
- Engineering & Aerospace Industry
- Automotive industry
- Oil & Gas Industries
- Power Generation
- Architectural Trim and Molding
- Kitchen Benches, Sinks, Equipment
- Food Processing Equipment
Super Duplex S32750 / S32760 Hex Nuts Export Countries
Iraq, Switzerland, Oman, Indonesia, Peru, Turkey, Mexico, Italy, Bahrain, Malaysia, Denmark, Brazil, Ghana, Austria, Netherlands, Chile, India, Saudi Arabia, Israel, Qatar, Mongolia, Jordan, Slovakia, Kuwait, Greece, Venezuela, Russia, Czech Republic, Croatia, Kazakhstan, Finland, Sweden, Nigeria, Libya, Ecuador, Trinidad & Tobago,Tunisia, Vietnam, Estonia, Belgium, Australia, New Zealand, South Africa, Poland, Thailand, Portugal, Poland, Angola, France, Taiwan, Chile, Philippines, Gabon, Serbia, Lithuania, Bolivia, Japan, Pakistan, Azerbaijan, Kenya, Canada, United Kingdom, Morocco, Afghanistan, Bulgaria, Iran, Lebanon, Spain, Bhutan, Mexico, Nigeria, Hong Kong, Norway, Algeria, Ukraine, China, Romania, United States, South Korea, Singapore, Argentina, Costa Rica, Belarus, Colombia, Sri Lanka, Hungary, Bangladesh, Yemen, United Arab Emirates, Egypt, Iran.
